CAT 3116 Engine Rebuild Parts Checklist: Piston, Bearings, Valves, Water Pump and More

CAT 3116 Engine Rebuild Parts Checklist: Piston, Bearings, Valves, Water Pump and More

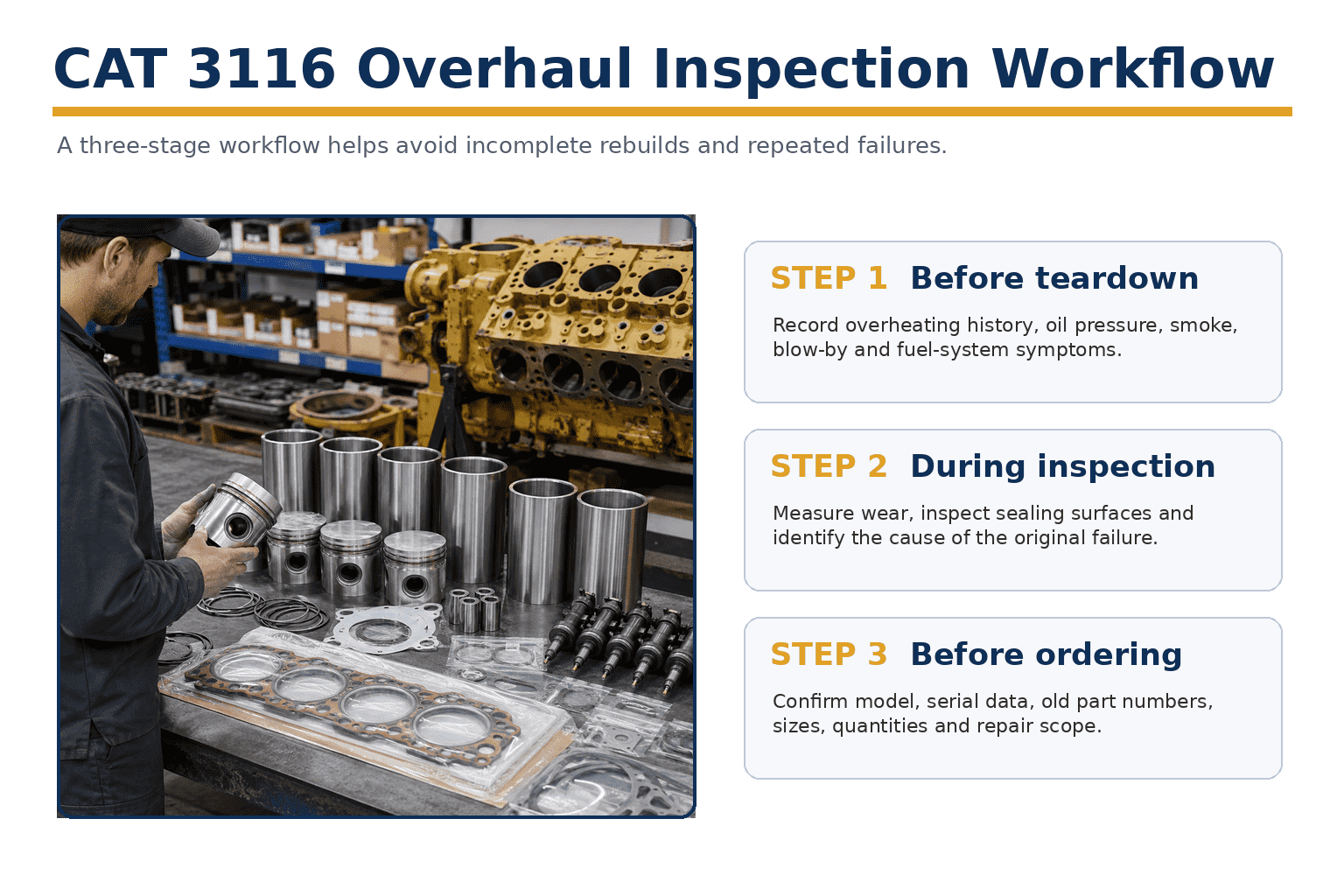

A CAT 3116 overhaul is easier to plan when the required components are grouped into a clear inspection checklist. Some engines need only targeted replacement parts, while others require a broader rebuild package. The correct list should follow measured wear, repair history and the cause of the original failure rather than a generic kit name.

1. Pistons, Rings and Cylinder Liners

Inspect piston crowns, ring grooves, piston pins and cylinder surfaces. Check liner wear, scoring and sealing condition. If multiple cylinder-group components are worn, a grouped overhaul or liner kit may be more practical than buying isolated parts.

2. Main Bearings, Connecting Rod Bearings and Lower-End Parts

Check the main bearings, connecting rod bearings, thrust components, connecting rods and crankshaft condition. Do not assume standard size if the crankshaft has previously been repaired or machined.

3. Valves and Cylinder-Head Components

Top-end inspection should include the valves, guides, seats, sealing surfaces and gasket condition. If the engine has suffered overheating or poor sealing, the cylinder-head area should be inspected before deciding which parts to replace.

4. Water Pump and Cooling-System Parts

A water-pump problem can contribute to overheating and repeated engine damage. If there is a history of coolant loss or high operating temperature, inspect the water pump and related cooling-system components as part of the rebuild plan.

5. Oil Pump and Lubrication-System Parts

Low oil pressure or contamination can damage bearings and internal engine surfaces. The oil pump and lubrication passages should be checked when there is evidence of oil-pressure problems or abnormal bearing wear.

6. Fuel Injectors and Supporting Parts

Injectors may not be included in every standard overhaul kit, but they can still affect performance after the engine is rebuilt. If the engine had rough running, poor combustion, smoke or difficult starting, review the fuel-system condition separately.

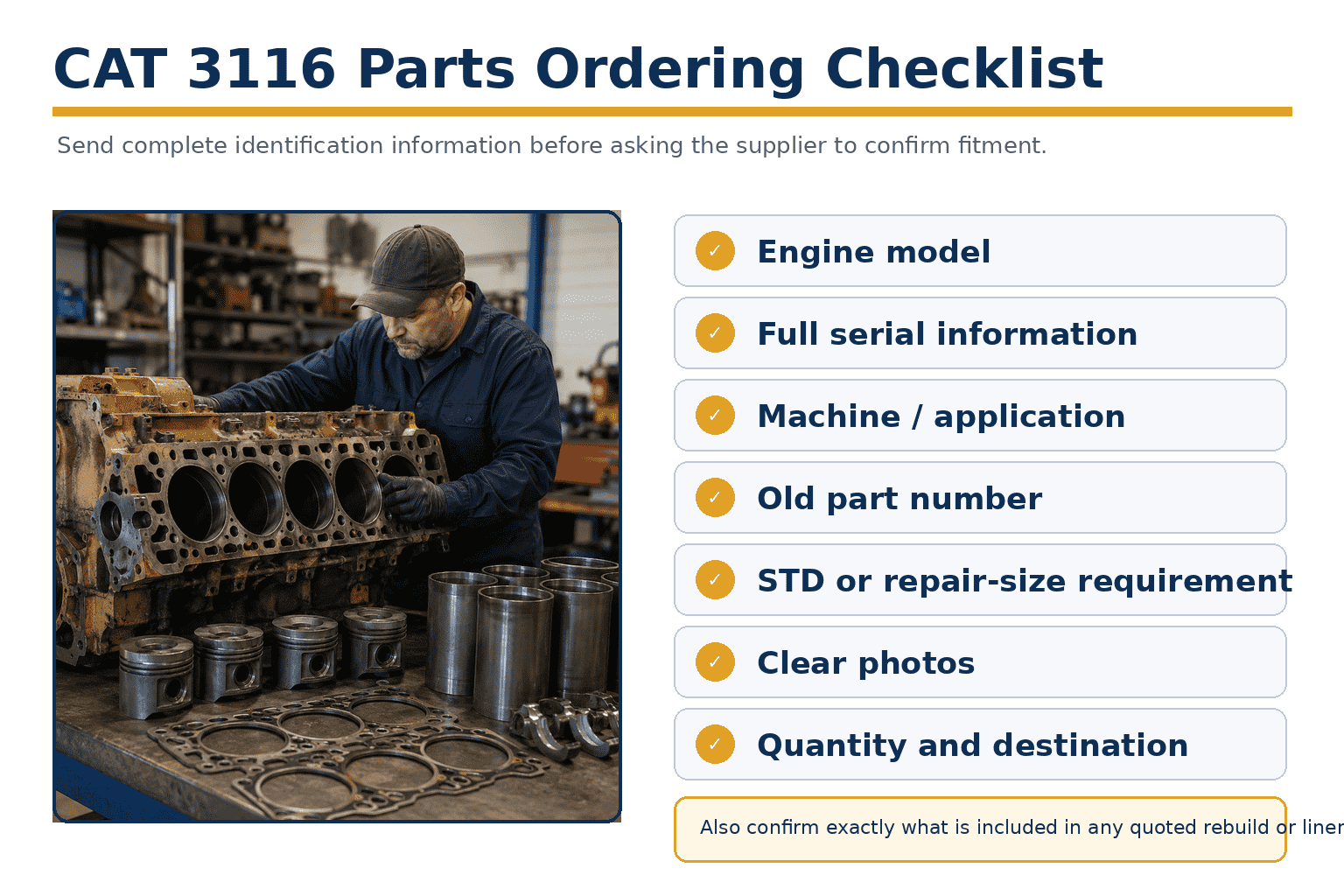

7. What to Confirm Before Ordering

Before requesting a final quotation, send the engine model, serial information, old part number and clear photos. Also confirm whether you need standard or repair-size parts, the quantity, and which components are already being reused.
